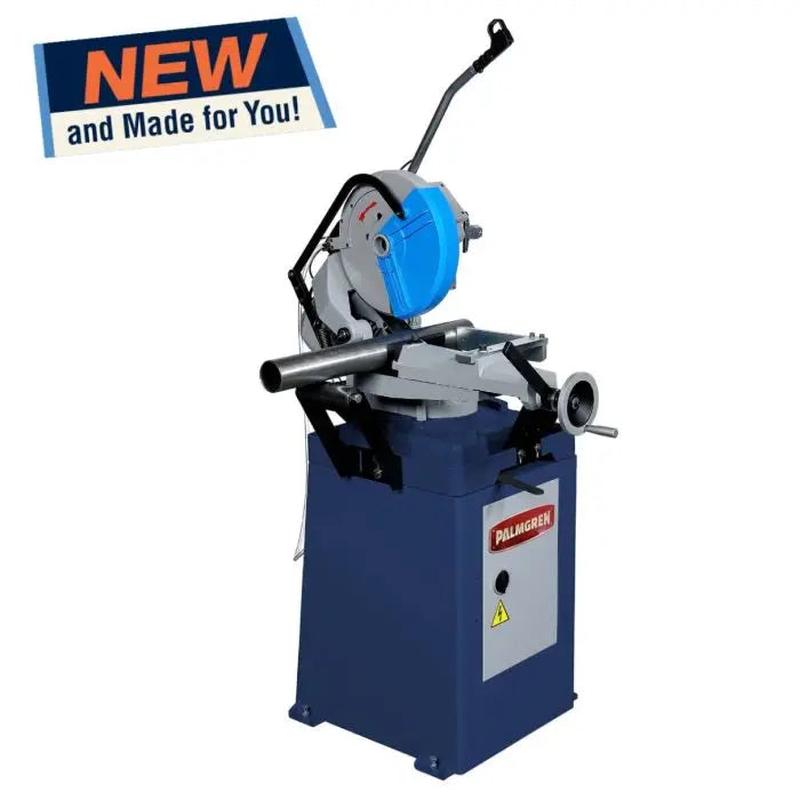

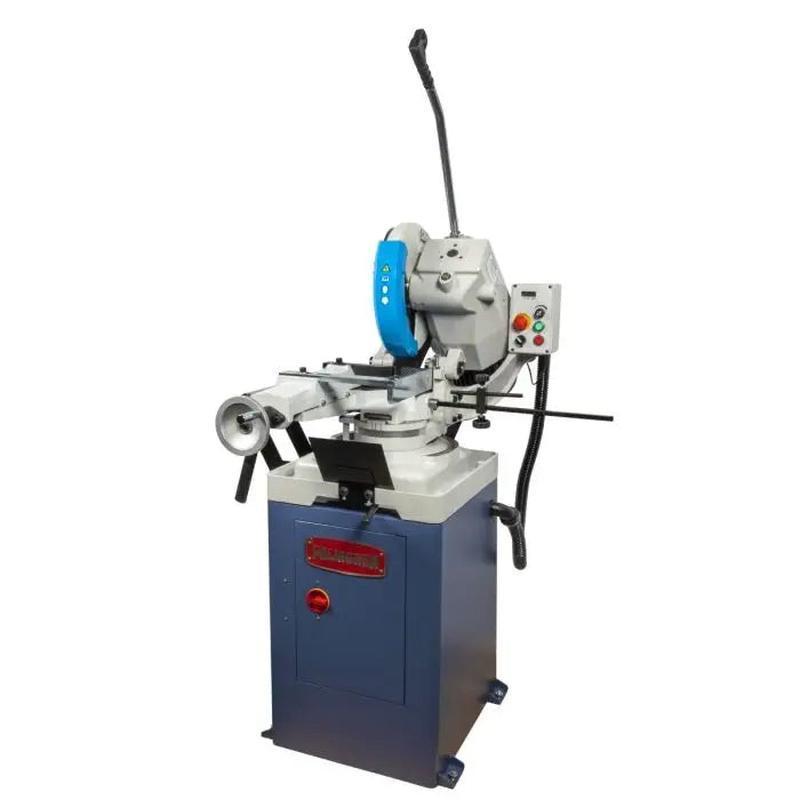

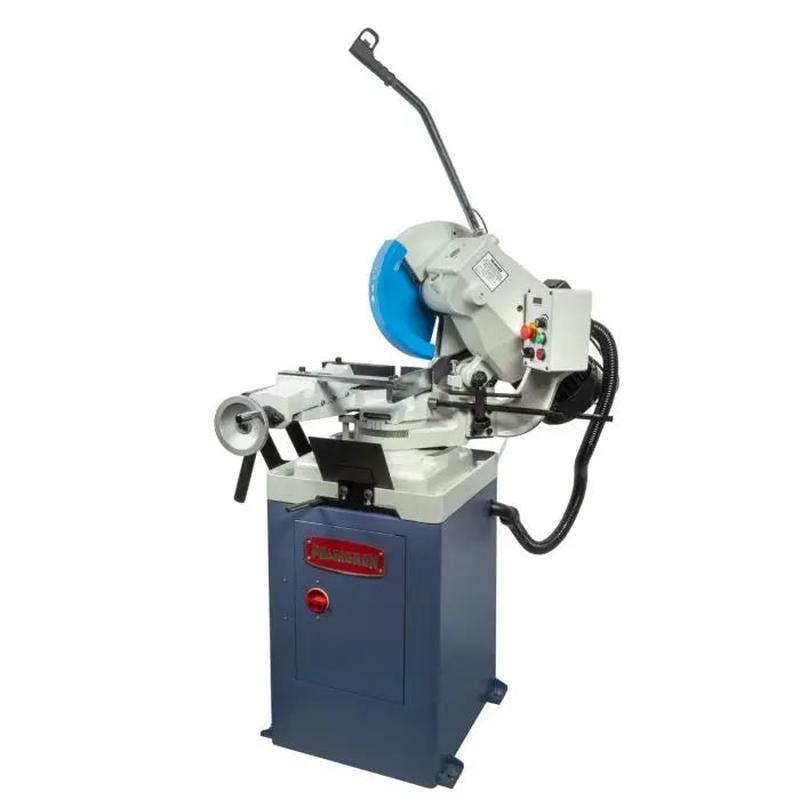

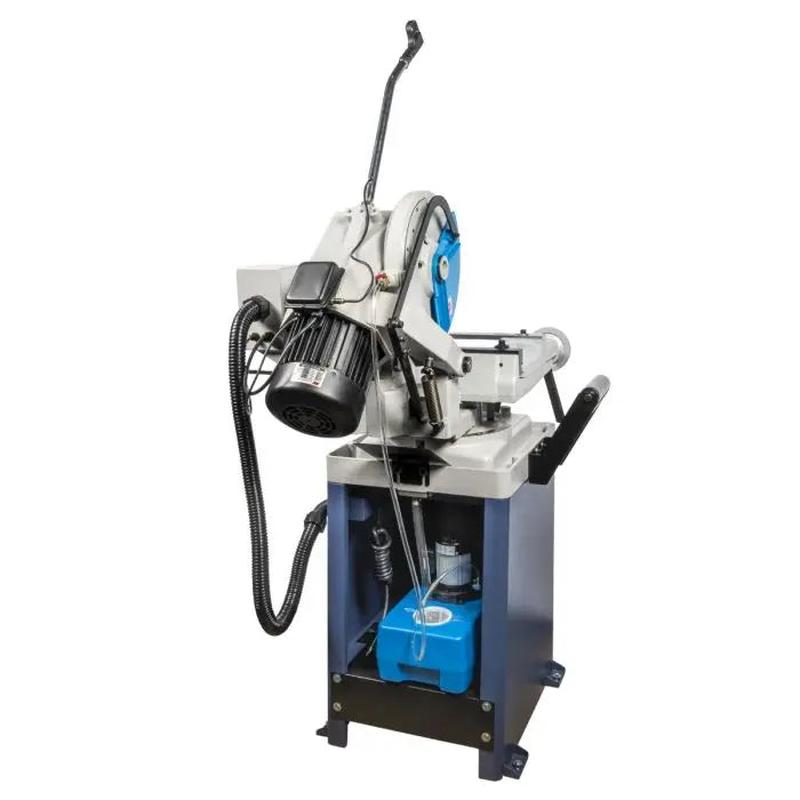

Palmgren Cold Saw 14" Variable Speed 230V 1PH
Free Shipping on this item!
Palmgren Cold Saw 14" Variable Speed 230V 1PH
Palmgren’s 14" model cold saw is ideal for cutting low and high carbon steels, medium gauge tubes and profiles.
It delivers precise, smooth, burr free straight or angle cuts consistently.
-
Advanced gear box design utilizing taper roller bearings, hardened and ground gears with a high quality bronze worm gear in an oil bath
-
Rapid acting vise, adjustable, anti-burr, allows for secure clamping of the workpiece, improving accuracy and finish
-
Flood coolant system
-
Material feed support roller bracket and adjustable work stop
-
Safety electrical package includes overload & low voltage protection, safety spring loaded 24 volt trigger switch, emergency stop button and two speed motor switch
-
Cast iron base mounted to a heavy duty solid steel floor stand
|
Cold Saw and Band Saw Saw Type |
Manual |
|---|---|
|
Country of Origin |
TW |
|
Cutting Angle |
0/45° |
|
Cutting Angle Adjustment |
Manual |
|
Feed |
Manual |
|
Machine Weight |
550 |
|
Motor HP |
3 |
|
Overall Dimensions (LxWxH) |
49-1/2" x 40-1/2" x 71-3/4” |
|
Phase |
Single |
|
Round Material Max. 0 Degrees |
3-5/16" |
|
Round Material Max. 45 Degrees |
3" |
|
Saw Blade Diameter |
14" |
|
Sawing Type |
Vertical Band Saws |
|
Speed Range |
24-120 RPM |
|
Square Max. 0 Degrees |
4" x 4" |
|
Square Max. 45 Degrees |
3-5/16"x3-5/16" |
|
Voltage |
230 |
|
Warranty |
3 Year |
|
UPC |
726896831541 |
|
Unit of Measure |
EA |
|
Product Length (in) |
28.3 |
|
Product Width (in) |
63 |
|
Product Weight (lbs) |
47 |
