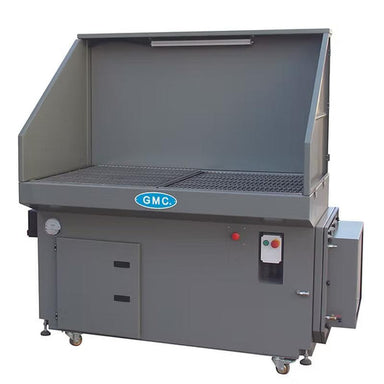

GMC DDT-6137 Metal Downdraft Table

61" x 37" Table size, 4HP, 1,550 CFM, 220V, 3 phase

Standard Features:

ISO 9001 certified
Taiwan Machine
Heavy welded all steel construction for maximum rigidity
Silence electrical motor 4HP, 220V,3phase
Air cleaning system
Safety under OSHA requirement
Overload protection and disconnect switch
One year warranty for parts

Standard Equipment:

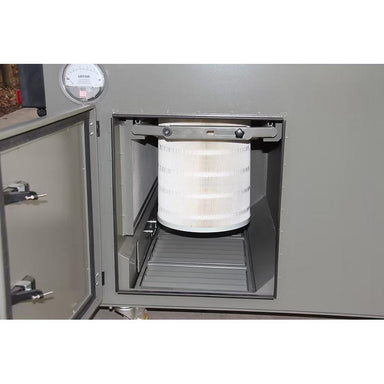

Spark arresting metal filter, fire resistant cartridge filter, HEPA filter
Work light, 110V
Air tool outlet
(4) caster wheels & leveling feet.

Specifications:

DISCLAIMER

Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.

This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.

Table Working Area	61" x 37"
Vacuum Capacity CFM	1,550 CFM
(3) Filters: Stage 1 Stage 2 Stage 3	11-1/4”x25”X7/8” G2 Dia. 11-1/4” x L 13”, F7 18”x20”x6”, H13, HEPA
Table load weight, max.	1,650 LBS
Table Height	39"
Main Motor	4 HP, 220V, 3 PH
Machine Weight	1,150 LBS
Machine Dimensions, LxWxH	79" x 46" x 80"
