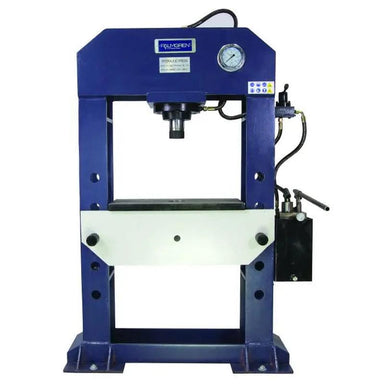

Palmgren Hydraulic Press 75T Manual Pump

Palmgren’s Hand Operated H-Frame Press Line consists of 10, 25- and 75-ton presses.

Each machine is constructed from heavy duty steel plate that is welded together.

The combination of rigid construction and industrial grade hydraulics make Palmgren’s H-Frame presses the ultimate solution for the serious fabrication and machine shop owner who demands only the best quality from his operation.

Pressure gauge for direct pressure readings
Easily adjustable table for quick height changes between applications
Holes in side frames allow for insertion of long material
Hand operation for economic performance
Efficient hand pump is conveniently located for reduced operator fatigue
Fully-welded heavy steel plate frame for maximum rigidity
Factory preset relief valve to prevent exceeding maximum pressure capacity
By-pass hole prevents excessive ram extension
Rapid ram return starts as soon as release valve is opened and may be stopped at any point by closing the valve
Single acting cylinder design for improved operation
Table Weight Capacity: 3300 lbs
Adj. between Table Pin to Holes: 5.9 in
Distance between channels: 10.16 in
V-Block Weight: 5.9 lbs

Capacity over Table (inches)	15.75
Country of Origin	CN
Cylinder (Fixed or Dynamic)	FIXED
Cylinder Type	Single Action
Diameter of Work (inches)	23
Frame Capacity	75 tons
H-frame Press Type	Electronic Pump
Largest Arbor Extension	11.81
Leverage Radio	1000/1
Max. Distance Ram to Table	23.6"
Max Pressure	75 ton
Max. Work Diameter	23" x 25.5"
Minimum Work Diameter	23 x 0.75
Overall Dimensions (LxWxH)	50" x 23" x 87"
Pressure (tons)	75
Press Type	H-frame Presses
Pump Type	MANUAL
Ram Bore (inches)	2.5
Ram Diameter	2.5
Ram Size	11.81
Reservoir Capacity	12 QT 20L
Size of Ram Face (inches)	2.5 Dia.
Table Weight	175
Throat Capacity	23.6" x 15.75"
Warranty	3 Year
Working Height (inch)	15-43
Working Width (inch)	31.5
UPC	726896616155
Unit of Measure	Each
Product Height (in)	78.75
Product Width (in)	67
Product Weight (lbs)	460
