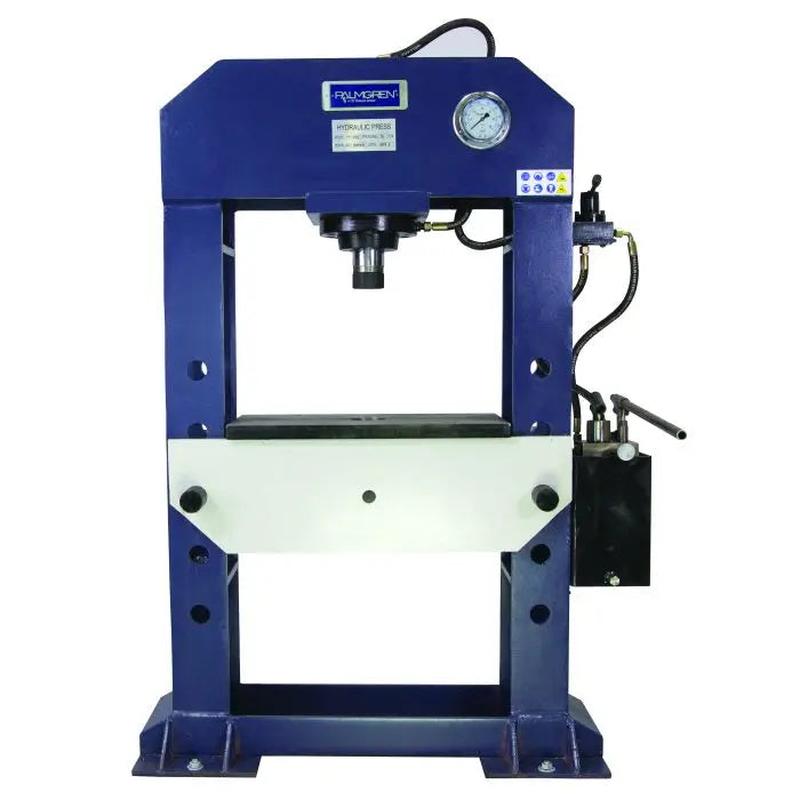

Palmgren Hydraulic Press 75T Manual Pump
Palmgren’s Hand Operated H-Frame Press Line consists of 10, 25- and 75-ton presses.
Each machine is constructed from heavy duty steel plate that is welded together.
The combination of rigid construction and industrial grade hydraulics make Palmgren’s H-Frame presses the ultimate solution for the serious fabrication and machine shop owner who demands only the best quality from his operation.
-
Pressure gauge for direct pressure readings
-
Easily adjustable table for quick height changes between applications
-
Holes in side frames allow for insertion of long material
-
Hand operation for economic performance
-
Efficient hand pump is conveniently located for reduced operator fatigue
-
Fully-welded heavy steel plate frame for maximum rigidity
-
Factory preset relief valve to prevent exceeding maximum pressure capacity
-
By-pass hole prevents excessive ram extension
-
Rapid ram return starts as soon as release valve is opened and may be stopped at any point by closing the valve
-
Single acting cylinder design for improved operation
-
Table Weight Capacity: 3300 lbs
-
Adj. between Table Pin to Holes: 5.9 in
-
Distance between channels: 10.16 in
-
V-Block Weight: 5.9 lbs
|
Capacity over Table (inches) |
15.75 |
|---|---|
|
Country of Origin |
CN |
|
Cylinder (Fixed or Dynamic) |
FIXED |
|
Cylinder Type |
Single Action |
|
Diameter of Work (inches) |
23 |
|
Frame Capacity |
75 tons |
|
H-frame Press Type |
Electronic Pump |
|
Largest Arbor Extension |
11.81 |
|
Leverage Radio |
1000/1 |
|
Max. Distance Ram to Table |
23.6" |
|
Max Pressure |
75 ton |
|
Max. Work Diameter |
23" x 25.5" |
|
Minimum Work Diameter |
23 x 0.75 |
|
Overall Dimensions (LxWxH) |
50" x 23" x 87" |
|
Pressure (tons) |
75 |
|
Press Type |
H-frame Presses |
|
Pump Type |
MANUAL |
|
Ram Bore (inches) |
2.5 |
|
Ram Diameter |
2.5 |
|
Ram Size |
11.81 |
|
Reservoir Capacity |
12 QT 20L |
|
Size of Ram Face (inches) |
2.5 Dia. |
|
Table Weight |
175 |
|
Throat Capacity |
23.6" x 15.75" |
|
Warranty |
3 Year |
|
Working Height (inch) |
15-43 |
|
Working Width (inch) |
31.5 |
|
UPC |
726896616155 |
|
Unit of Measure |
Each |
|
Product Height (in) |
78.75 |
|
Product Width (in) |
67 |
|
Product Weight (lbs) |
460 |
