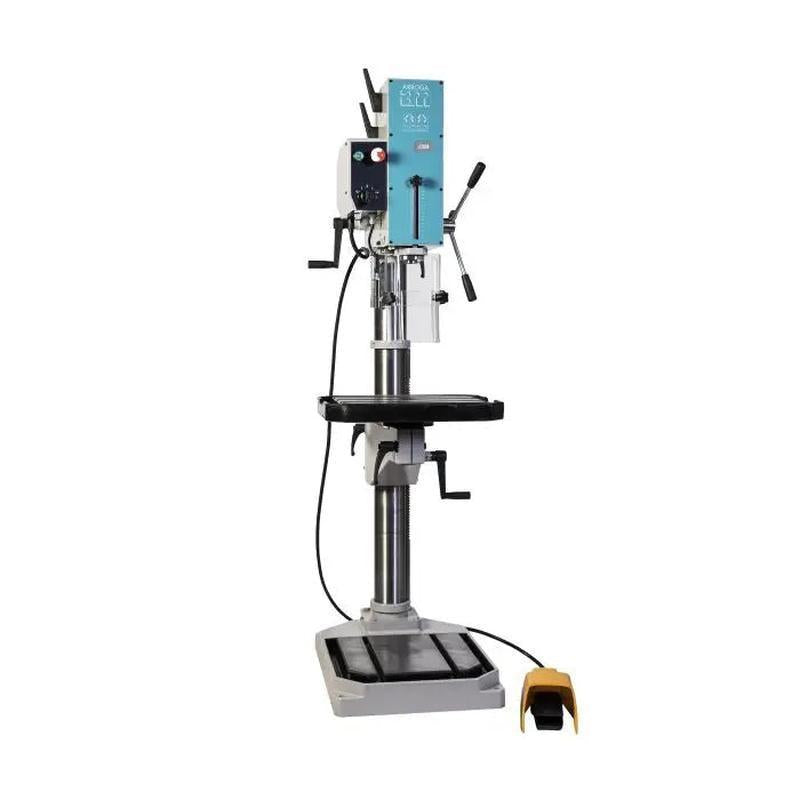

Palmgren Drill Press 25" Gear Head 230V with Foot Switch
Free Shipping on this item!
Palmgren Drill Press 25" Gear Head 230V with Foot Switch
This premier all gear drive drill press combines power with precision to handle virtually any drilling application.
The gear drive transmission delivers full power at any speed, driving the cutting tools at nearly 100% of the available motor horsepower.
Helical ground gears ensure positive, quite operation and make speed changes fast and easy.
The wide speed range makes this the ideal drill for drilling large to small diameter holes fast and easy.
-
Inch/Metric depth stop
-
2 speed manual forward & reverse switch
-
Foot reversing switch
-
Head & table rotates 360 degrees around the column
-
Machined & t-slotted table and base
-
Quick release drill ejector
-
Chuck guard
-
No-volt release prevents spindle start up when power returns after shutdown
-
4" Palmgren drill press vise
-
Drill chuck & arbor
-
Made in Sweden
|
Capacity Cast Iron |
1-1/4" |
|---|---|
|
Capacity Steel |
1-1/8" |
|
Column Diameter |
4-1/8" |
|
Motor HP |
1.5-2 |
|
Number of Spindle Speeds |
8 |
|
Number of Table Slots |
3 |
|
Overall Dimensions (LxWxH) |
18-3/4" x 26-3/4" x 74-1/2" |
|
Phase |
Three |
|
Power Feed |
No |
|
Spindle Taper |
MT3 |
|
Spindle Travel |
5-7/8" |
|
Swing |
25" |
|
Table Dimensions |
20" x 15-3/4" |
|
Table Slot Size |
1" |
|
Voltage |
230 |
|
Warranty |
5 Year |
|
UPC |
726896802480 |
|
Product Weight (lbs) |
572 |
