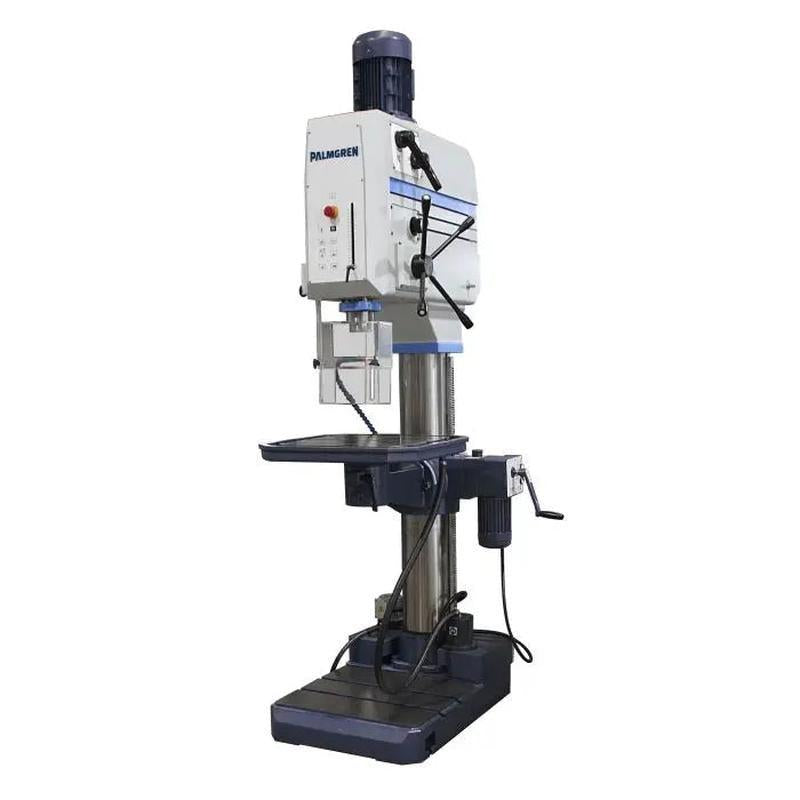

Palmgren Drill Press 32" Gear Head 16 Speed 460V
Free Shipping on this item!
Palmgren Drill Press 32" Gear Head 16 Speed 460V
These versatile, variable speed, gear head, drill presses are all gear driven, thus they are perfect for precision drilling applications and continuous industrial use.
The Palmgren 32" Drill Presses use a gear driven transmission that is designed to deliver full power at any speed, driving the cutting tool at nearly 100% of the available motor horsepower.
-
Extra wide speed range with 16 selectable speeds
-
Spindle gear box is equipped with hardened and ground steel gears and shafts, lubricated by an internal oil pump for quiet, smooth operation
-
Fully enclosed machine tool ground spindle with internal 4 MT mounted in precision bearings for maximum accuracy, minimizing deflection
-
Front mounted control panel designed for operator convenience
-
Rack and pinion table raiser system
-
T-slotted production table and base
-
Front mounted, dial adjusted, work stop
-
8" column provides maximum head, table and base support and stability
-
Flood coolant system
-
Maximum spindle runout of 0.0005"
-
Motorized table
-
Table tilts left & right 45°
|
AMPS |
8 |
|---|---|
|
Capacity Cast Iron |
2-1/8" |
|
Capacity Steel |
2" |
|
Chuck Size |
1/32-5/8"/JT3 Keyed Chuck |
|
Column Diameter |
8" |
|
Country of Origin |
CN |
|
Drill Press Model |
Floor Model |
|
Drill Press Type |
Variable Speed |
|
Max. Spindle To Base |
51" |
|
Motor HP |
4-5 |
|
Number of Spindle Speeds |
16 |
|
Phase |
Three |
|
Quill Diameter |
88mm |
|
Spindle Taper |
MT4/JT3 |
|
Spindle Travel |
7-7/8" |
|
Swing |
33" |
|
Table Dimensions |
25" x 20.5" |
|
Table Slots |
3 |
|
Table Slot Size |
14mm |
|
Tilting Angle |
0° to 90° |
|
Voltage |
460 |
|
Warranty |
3 Year |
|
UPC |
726896801414 |
|
Unit of Measure |
Each |
|
Product Weight (lbs) |
1300.7 |
