Palmgren Horizontal Band Saw 8"x12" Direct Drive
Free Shipping on this item!

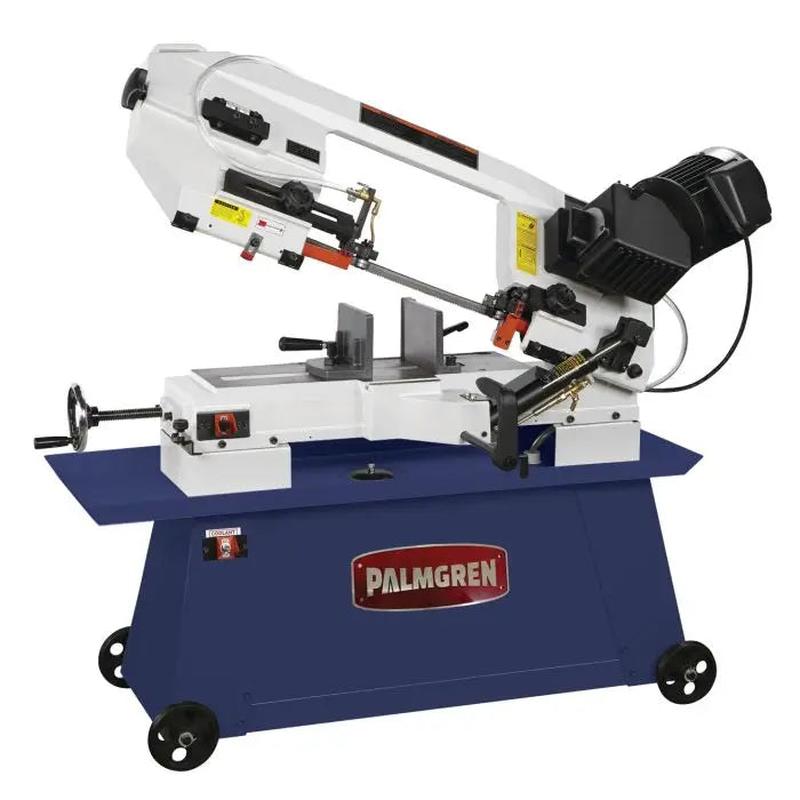

Palmgren Horizontal Band Saw 8"x12" Direct Drive
Cast iron and rigid steel construction of the saw head and base provides full blade support, eliminating vibration and deflection.
The combination of a direct drive train and hydraulic feed system delivers consistent accurate cuts.
-
Longer and larger blade wheels provide a greater radius to reduce stress on the blade
-
No belts to set or change
-
No wrenches are needed - the angle of cut can be easily set with the turn of a handle
-
Hydraulic feed control for cutting stock at variable rates
-
Adjustable blade guides deliver accurate cuts
-
Chip blade brush
-
Coolant system with adjustable coolant flow
-
Wheels that roll easy for positioning
|
Bed Height |
23-1/4” |
|---|---|
|
Blade Length |
93" |
|
Blade Width |
0.75" |
|
Blade Thickness |
0.035" |
|
Cold Saw and Band Saw Saw Type |
Manual |
|
Country of Origin |
TW, |
|
Machine Weight |
363 lbs. |
|
Manual Horiz. Band Saw Type |
Single miter |
|
Model Number |
83308 |
|
Motor HP |
1 |
|
Optional Accessories |
9683321 Replacement Blade |
|
Overall Dimensions (LxWxH) |
51" x 19" x 43" |
|
Phase |
Single |
|
Sawing Type |
Horizontal Band Saws |
|
Voltage |
120/240 |
|
Warranty |
3 Year |
|
UPC |
726896833088 |
|
Unit of Measure |
Each |
|
Product Height (in) |
42 |
|
Product Length (in) |
51 |
|
Product Width (in) |
18 |
|
Product Weight (lbs) |
352 |
