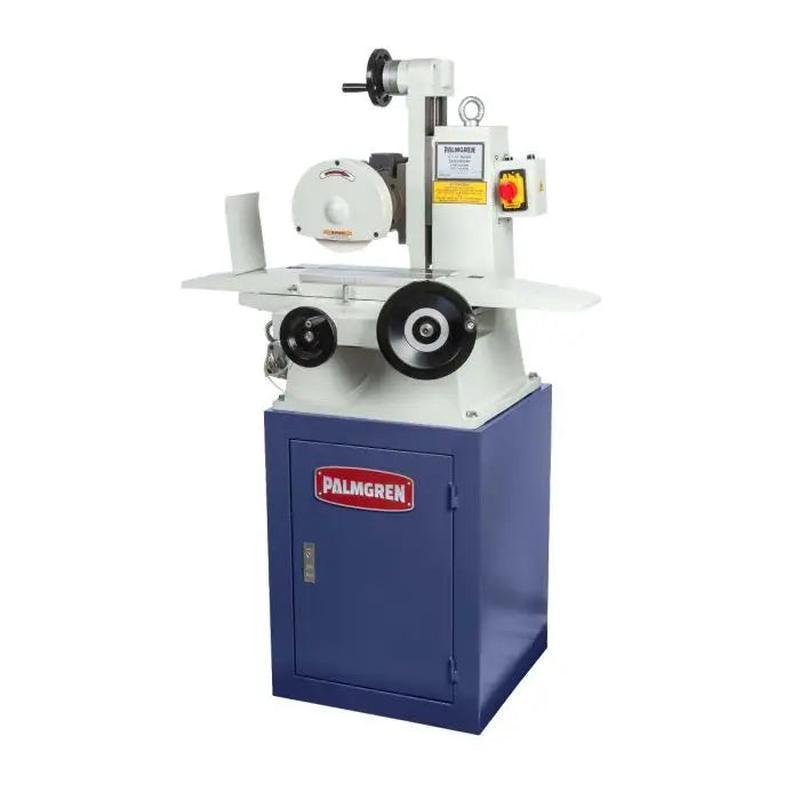

Palmgren Surface Grinder 6"x12" Manual Bench with Stand
This economical 6” x 12” manual surface grinder has many features found on larger units and is a perfect choice for small shops, tool rooms and maintenance shops when close tolerances are needed.
Bring mirror-like finishes to your metalworking projects with this professional grinder.
-
Meehanite cast iron construction- stress relieved to minimize vibration while maintaining rigidity and accuracy
-
Rack and pinion mechanism with dove tail ways
-
Hand scraped ways
-
Spindle and motor are a direct drive design and are dynamically balanced minimum vibration
-
Swarf guard
-
Large easy to read dials
-
Spiral bevel gear for easy vertical movement of the spindle head
-
Steel Floor Stand Included
|
Abrasive Finishing Type |
Bench Grinders and Buffers |
|---|---|
|
Bench Grinder and Buffer Drive |
Single Speed |
|
Country of Origin |
CN |
|
Cross Feed Motor |
0.001" |
|
Max. Grinding Length |
12-1/2" |
|
Max. Grinding Width |
6-11/16" |
|
Motor HP |
3/4 |
|
Optional Accessories |
Item # 9682130 Permanent magnetic chuck |
|
Phase |
Single |
|
RPM |
3600 |
|
Table Dimensions |
6" x 12" |
|
T-Slot Size/Distance/Quantity |
1/2" |
|
Vertical Feed Graduation |
0.0005" |
|
Voltage |
115 |
|
Table to Center of Spindle |
11 |
|
Wheel Size (Dia x W x Bore) |
7" x 1/2" x 1-1/4" |
|
UPC |
726896821221 |
|
Unit of Measure |
Each |
|
Product Height (in) |
38.38 |
|
Product Length (in) |
2.38 |
|
Product Width (in) |
2.38 |
|
Product Weight (lbs) |
710 |
