Palmgren Vertical Band Saw 15" Floor Model
Free Shipping on this item!

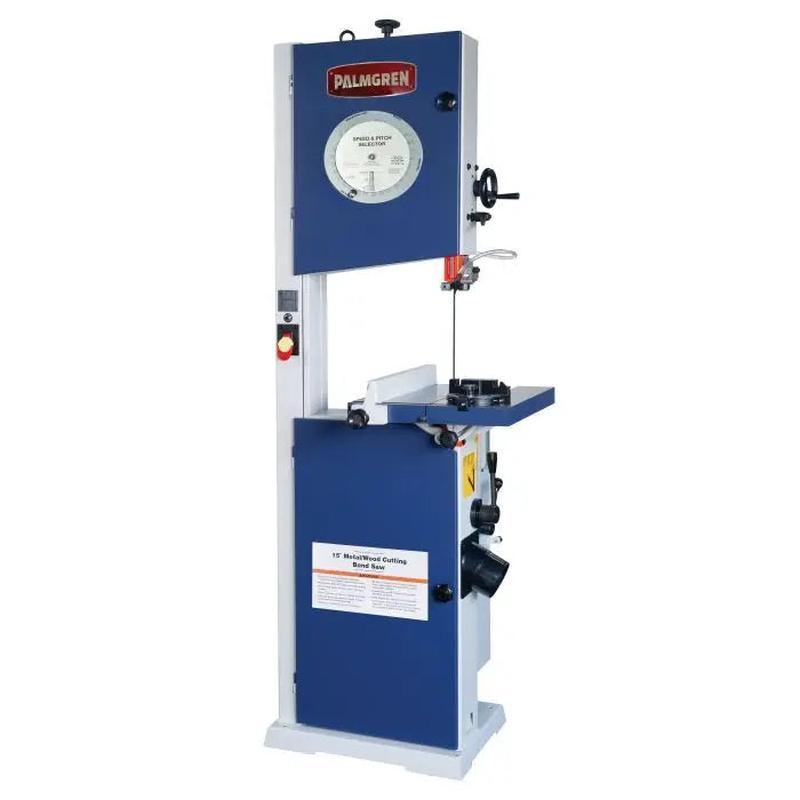

Palmgren Vertical Band Saw 15" Floor Model
The wood/metal vertical band saws are two saws in one.
Specially designed to effectively cut a variety of materials including wood, plastic, composites, ferrous and non-ferrous metals.
-
Unitized welded steel frame construction
-
Cast blade wheels
-
Large ground cast iron work table that tilts up to 45°
-
Adjustable precision bearing blade guides
-
Hinged wheel covers and convenient blade tensioning wheel for easy accessibility and fast blade changing and adjustments
-
4" dust port
-
Rip fence
-
Miter gauge
-
Chip blower
-
Chip chute
-
Extra wide speed range
-
15" comes with one 1/2" - 14 TPI metal blade, and one 1/2" - 6 TPI wood blade
|
Band Saw Type |
Vertical |
|---|---|
|
Blade Length |
114 in |
|
Blade Width |
1/8" to 3/4" |
|
Blade Thickness |
.035 in |
|
Cold Saw and Band Saw Saw Type |
Manual |
|
Coolant |
Air |
|
Country of Origin |
TW |
|
Cutting Capacity |
254 mm / 10 in round |
|
Cutting Capacity Miter |
45° |
|
Frequency of Use |
Intermittent Use, Light Production (Less than 25% of work day) |
|
Manual Horiz. Band Saw Type |
Miter with vise |
|
Material to be Cut |
Ferrous Metals, Non-Ferrous Metals, Composites, Plastics, Wood |
|
Miter Capacity |
45º |
|
Model Number |
83115 |
|
Motor HP |
1 |
|
Optional Accessories |
Replacement Blade for 9683115 9683325 Bi-Metal, 1/2" x 0.035" x 10-14 TPI 9683326 Carbon, 1/2" x 0.032" x 4 TPI |
|
Overall Dimensions (LxWxH) |
25" x 27" x 78" |
|
Phase |
Single |
|
Sawing Type |
Vertical Band Saws |
|
Table Dimensions |
15 x 15 in |
|
Throat Capacity |
15" |
|
Type of Cutting |
Angle/Miter, Contour, Cutting-Off, Pattern/Cutting Out/Notching, Ripping, Single Piece, Stacking, Straight |
|
Voltage |
115/230 |
|
Warranty |
3 Year |
|
Wood Cutting Saw Type |
Vertical |
|
UPC |
726896831152 |
|
Unit of Measure |
Each |
|
Product Height (in) |
76 |
|
Product Length (in) |
24 |
|
Product Width (in) |
26 |
|
Product Weight (lbs) |
346 |
