Siegmund US160780: Table Press for the Siegmund System 16 Imperial Series Welding Tables
The System 16 Table Press Enables Fast, Powerful, and Effortless Support and Adaptability.

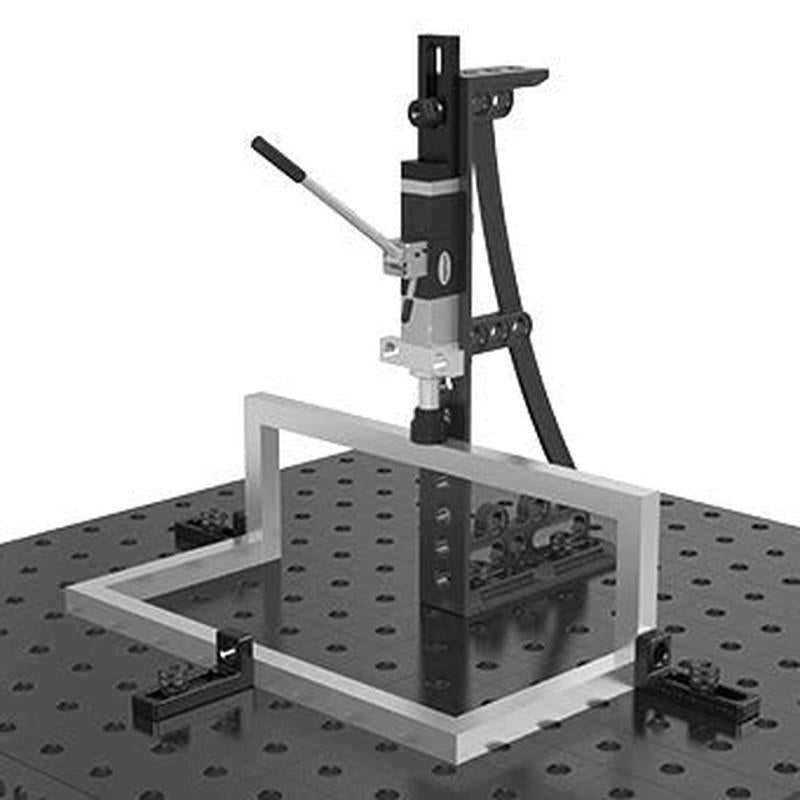

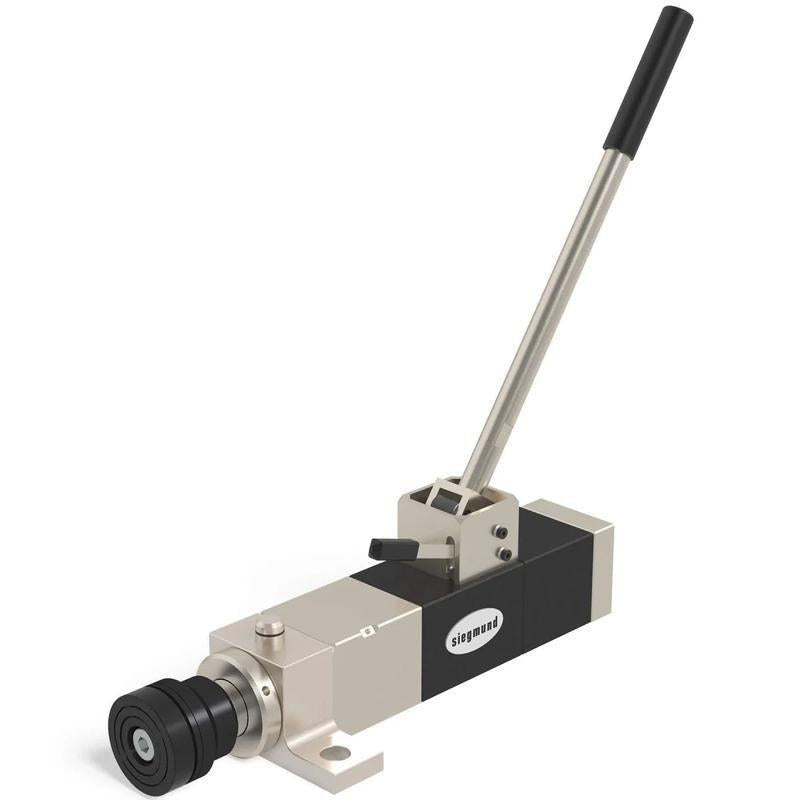

The Siegmund table press is used for straightening deformed steel products.
With a compressive force of 2.5 tons, parts that have unwanted unevenness or tension in the material, can be straightened.
-
Straightening deformed steel products with a compressive force of 5,512 lbs
-
The total stroke is 2.4", which can be achieved with 13 pump strokes
-
The overflow valve prevents additional pressure build-up when the piston rod is fully extended.
ENDLESS ADAPTABILITY
-

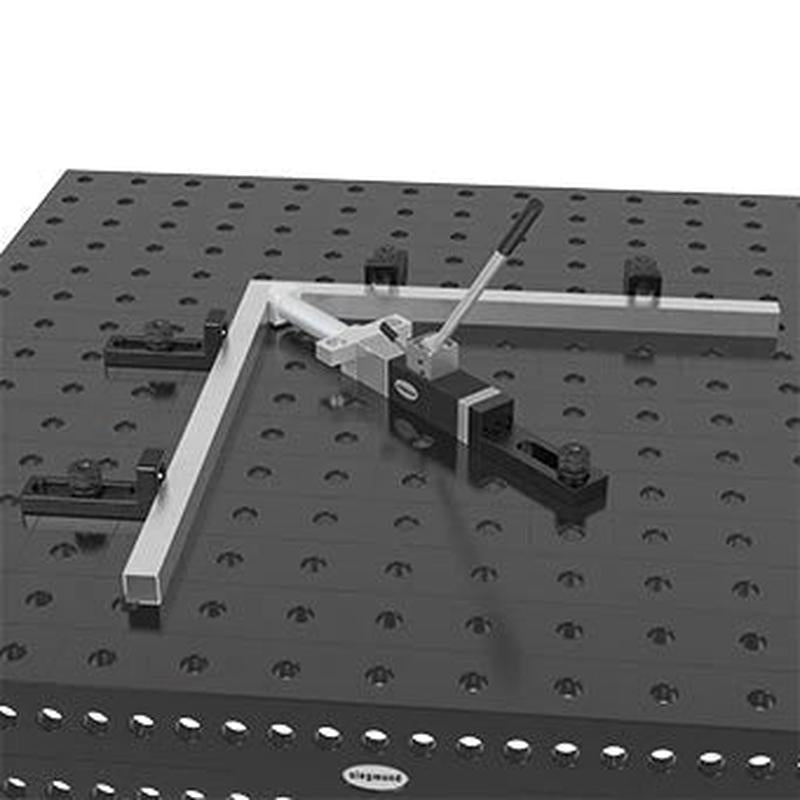

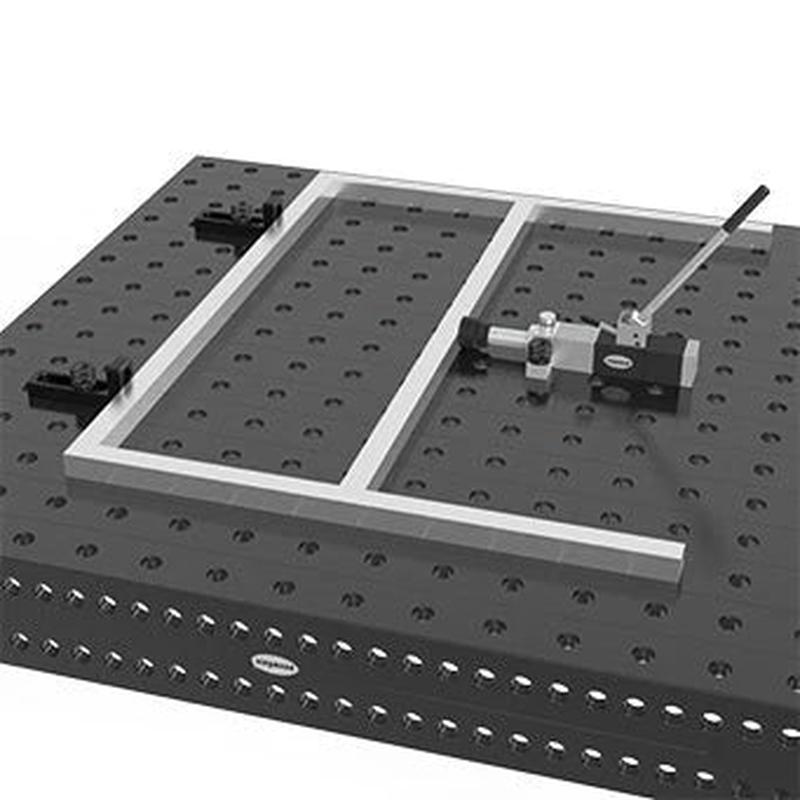

With the help of the integrated bolt, the table press can be used horizontally or vertically. (Bolts Not Included)
-
It is Compatible with All Other Squares and Welding Tables.
-

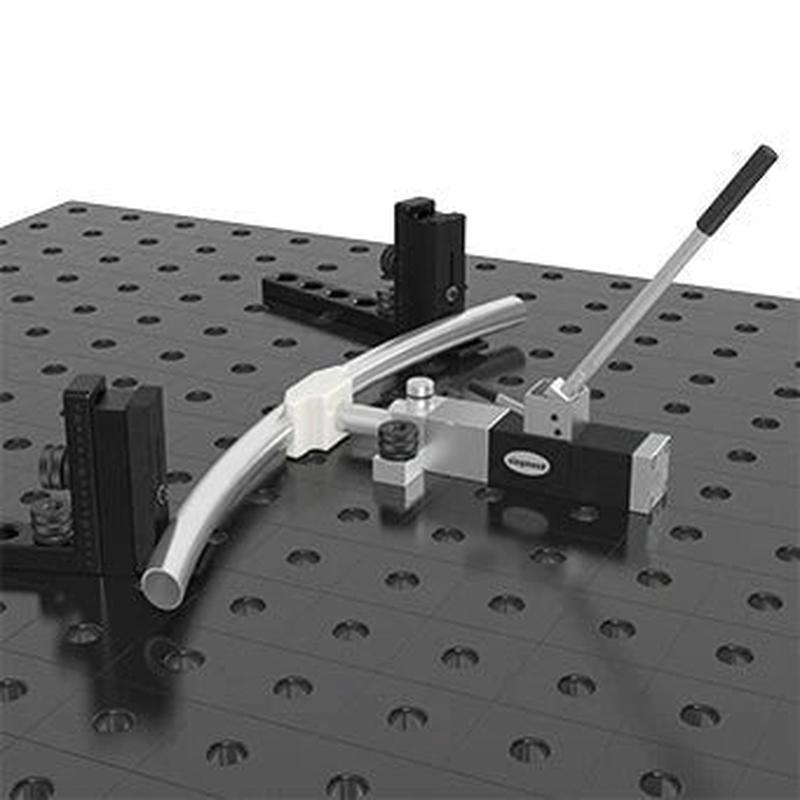

The shaped pipe former can bend or straighten pipes up to 1.7" in diameter.
-
The correct sequential process will provide a clean mark free result.
-
A Long Lifetime and Efficiency is Guaranteed by its High-Quality Material.
-
The Overall Design Allows Any Piece to be Held in Place Tightly.
Specs and Features of the System 16 Imperial Series Table Press Item No. US160780:
Weight: 14.34 lbs.
Total Stroke: 2-3/8"
Operating Force: 75 lbf.
Compressive Force: 5,512 lbs
