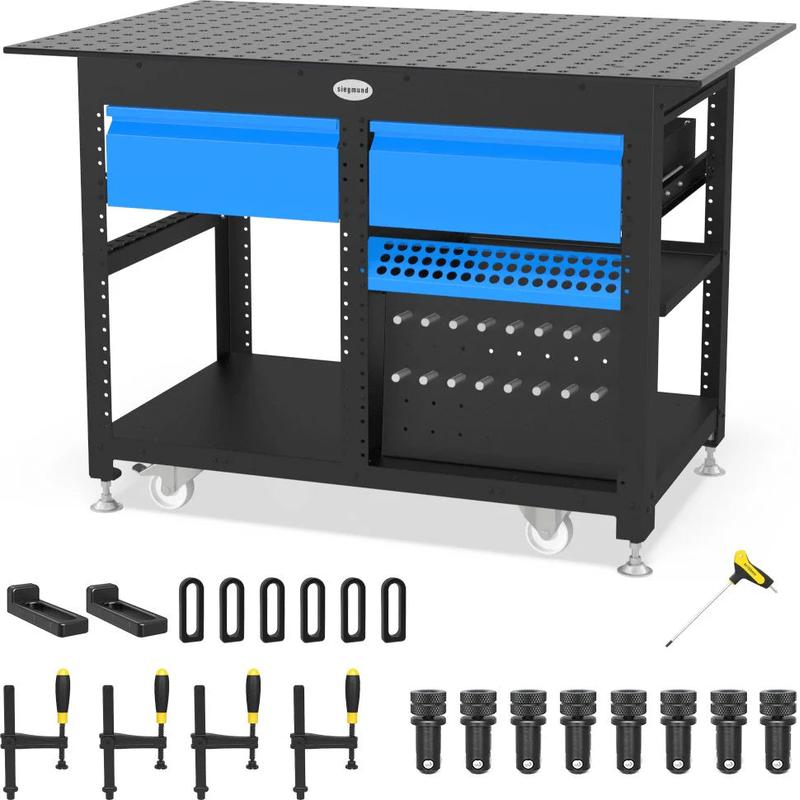

Siegmund US167342: System 16 Imperial Series Workstation with "Set B" Including 2.8'x4' (32"x48") Perforated Plate & 2 Storage Drawers
by Siegmund
SKU US167342
$2,587.00
Siegmund US167342: System 16 Imperial Series Workstation with "Set B" Including 2.8'x4' (32"x48") Perforated Plate & 2 Storage Drawers
The System 16 Welding Workstation is the ideal choice for fine detail applications.
All System 16 Workstations feature the latest upgrades in aesthetics, versatility, and durability.
Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.
Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.
Thanks to the intelligent concept of the Siegmund Workstation, all of your tools are always within reach at your workplace.
The Siegmund Workstation is the perfect welding platform, with more than enough space for all of your accessories.
The Siegmund Workstation is the perfect welding platform, with more than enough space for all of your accessories.
PERFORATED 2.8' x 4' (32" X 48") PLATE
- Through-Hardened X8.7 Tool Steel + Plasma Nitrided and BAR-Coated
- 16mm (5/8") Diameter Boreholes on Surface
- 2" x 2" Center to Center Borehole Grid Distance
- 7/16" to 1/2" Approximate Material Thickness
WORKSTATION LEGS
- The combined leg and caster, gives the Siegmund Workstation mobility.
- Casters are included with this Workstation as a Standard.
- Base Plates have a "Fine Tune Adjustment" to enable a more precise working surface.
DIRT PROTECTION
- Two Cover Slides are below the table to protect your tools from Weld Spatter and Dirt.
- For Cleaning, you can pull out both covers like drawers.
THE WEIGHT BEARING LOAD
- The Siegmund Workstation with base plate is able to bear a total weight of approximately 2,200 lbs.
- Please note that when you are using the caster wheels, the overall weight load capacity is reduced to approximately 880 lbs.
MAXIMUM STORAGE
- The Siegmund Workstation features defined storage for tooling and accessories that can be shelved for easy reach.
- You can customize, build or retrofit your Workstation with drawers at various height to increase your storage capability.
- "Upgrading" your workstation with more drawers is possible at any time. On the left and right side, you have 23-5/8" spacing.
- The maximum weight load capacity per drawer is approximately 110 lbs.
US164003
Quantity: 1
2.8'x4' Imperial Series Siegmund Workstation with 2 Storage Drawers
Quantity: 1
2.8'x4' Imperial Series Siegmund Workstation with 2 Storage Drawers
US160620.N
Quantity: 4
Basic Screw Clamp
Quantity: 4
Basic Screw Clamp
US160511
Quantity: 8
Short Fast Clamping Bolt (Burnished)
Quantity: 8
Short Fast Clamping Bolt (Burnished)
US160410.N
Quantity: 6
3-3/16" L
Universal Stop
(Nitrided)
Quantity: 6
3-3/16" L
Universal Stop
(Nitrided)
US160108.N
Quantity: 2
1" Stop and Clamping Square (Nitrided)
Quantity: 2
1" Stop and Clamping Square (Nitrided)
US160852
Quantity: 1
Hex Wrench 4
Quantity: 1
Hex Wrench 4
Welding Table Specs and Features:
- Overall Tabletop Size: 2.8' x 4' (32" x 48")
- Borehole Diameter: Ø 16mm (5/8")
- Overall Height of Workstation: 33"
- Welding Table Series: Professional Extreme 8.7 Series
- Welding Table Material Thickness: Approx. 7/16" to 1/2"
- Welding Table Material Type and Finish: Through Hardened Tool Steel, Plasma Nitrided and BAR-Coated
- Official Siegmund Welding Table Part No.: US164003
- Maximum Weight Load Not Using Casters: 2,200 lbs. (Based on Even Distribution)
- Maximum Weight Load Using Casters: 880 lbs. (Based on Even Distribution)
- Approximate Workstation Weight: 360 lbs.
- Boreholes on the Surface: are a 2"x2" Inch Grid Configuration.
