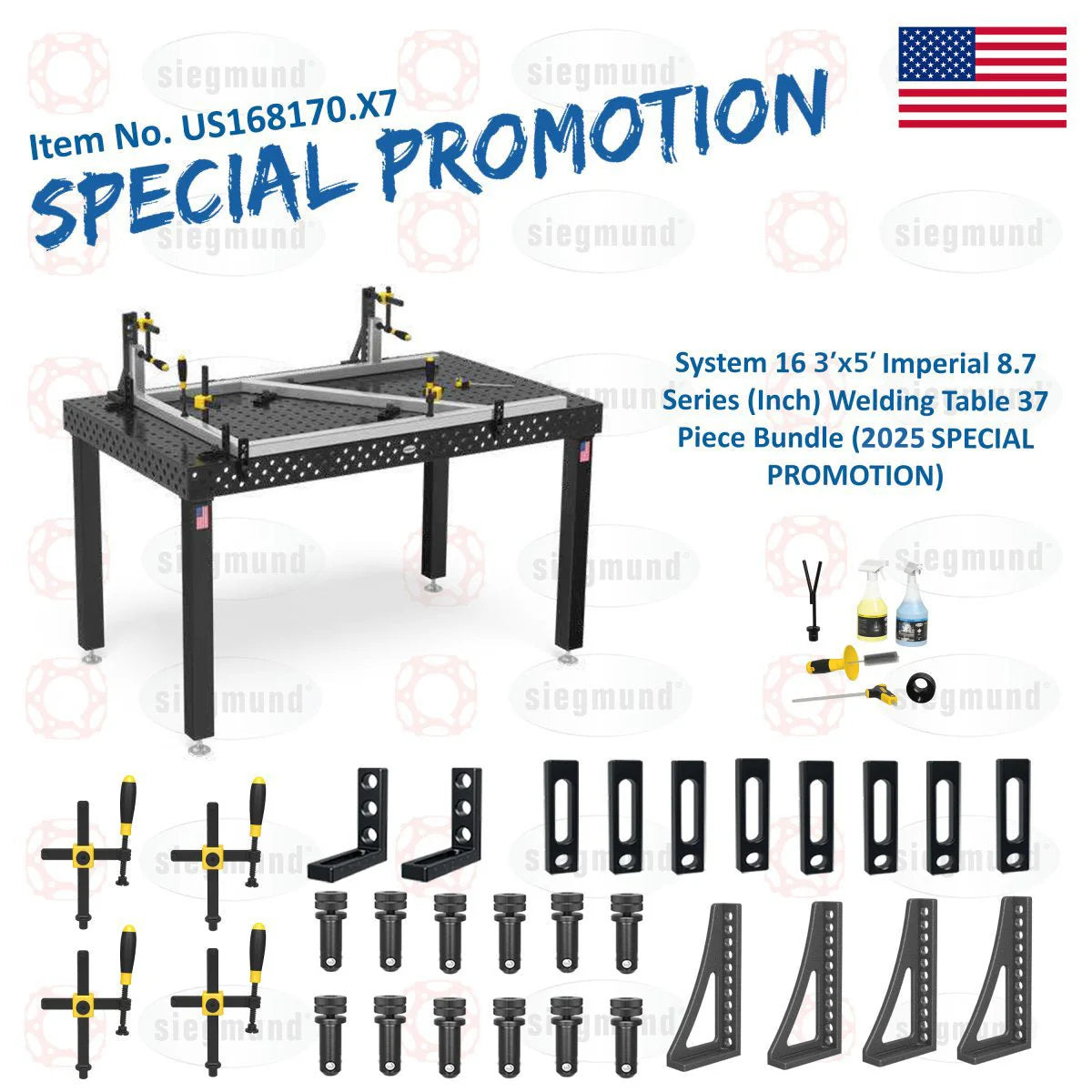

Siegmund US168170.X7: System 16 3'x5' (36"x60") Imperial 8.7 Series (Inch) Welding Table 37 Piece Bundle (2025 SPECIAL PROMOTION)

The System 16 Welding Table Series is the ideal choice for fine detail applications.

All System 16 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.

Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.

Items Included in Bundle #US168025.X7:

US160070.X7
Quantity: 1
System 16 3'x5' Imperial Series Welding Table
(Plasma Nitrided)

US160610.N
Quantity: 4
Professional Screw Clamp
(Nitrided)

US160511
Quantity: 12
Short Fast Clamping Bolt
(Burnished)

US160110.N
Quantity: 2
3-1/2" Stop and Clamping Square (Nitrided)

US160162.N
Quantity: 4
12" G Stop and Clamping Square (Nitrided)

US160420.N
Quantity: 8
5" Universal Stop (Nitrided)

US163999
Quantity: 1
Maintenance Set

Welding Table Specs and Features:

• Overall Tabletop Size: 3' x 5' (36" x 48")

• Borehole Diameter: Ø 16mm (5/8")

• Welding Table Series: Professional Extreme 8.7 Series

• Welding Table Material Thickness: Approx. 7/16" to 1/2"

• Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated

• Table Surface Hardness: 450-850 Vickers

• Official Siegmund Welding Table Part No.: US160025.X7

• Maximum Weight Load: 5,255 lbs. (Based on Even Distribution)

• Approximate Table Weight: 611 lbs.

1. Boreholes on the Surface are a 2"x2" Inch Grid Configuration.

2. Boreholes have a diameter of 16mm (5/8"), Boreholes have a 1/16" Radius.

3. Radius 1/10" on the table edges and 1/4" on the corners.

4. Height of table side is 3-5/16" Borehole in Diagonal Grid.

5. INCH Scale Engraved on the Surface.

6. Bottom of Structure has Reinforced Ribbing.

Siegmund System 16 Welding Table Leg Options - Full Specifications:

1. Standard Siegmund Leg(s)

• Item No.: US160858.X

• Leg Height: 32"

• Table Height: 36"

• Fine Adjustment: 1-5/8"

• Capacity Per Table Leg: 2,200 lbs.

2. Height Adjustable Siegmund Leg(s)

• Item No.: US160877.XX

• Leg Height (Adjustable): 22" - 38"

• Table Height (Adjustable): 26" - 42"

• Fine Adjustment: 1-5/8"

• Capacity Per Table Leg: 2,200 lbs.

3. Siegmund Leg(s) with Casters and Locking Brakes

• Item No.: US160876.XX

• Leg Height: 32"

• Table Height: 36"

• Fine Adjustment: 1-3/16"

• Capacity Per Table Leg: 440 lbs.

4. Height Adjustable Leg(s) with Casters and Locking Brakes

• Item No.: US160879.XX

• Leg Height (Adjustable): 24" - 36"

• Table Height (Adjustable): 28" - 40"

• Fine Adjustment: 1-3/16"

• Capacity Per Table Leg: 440 lbs.
