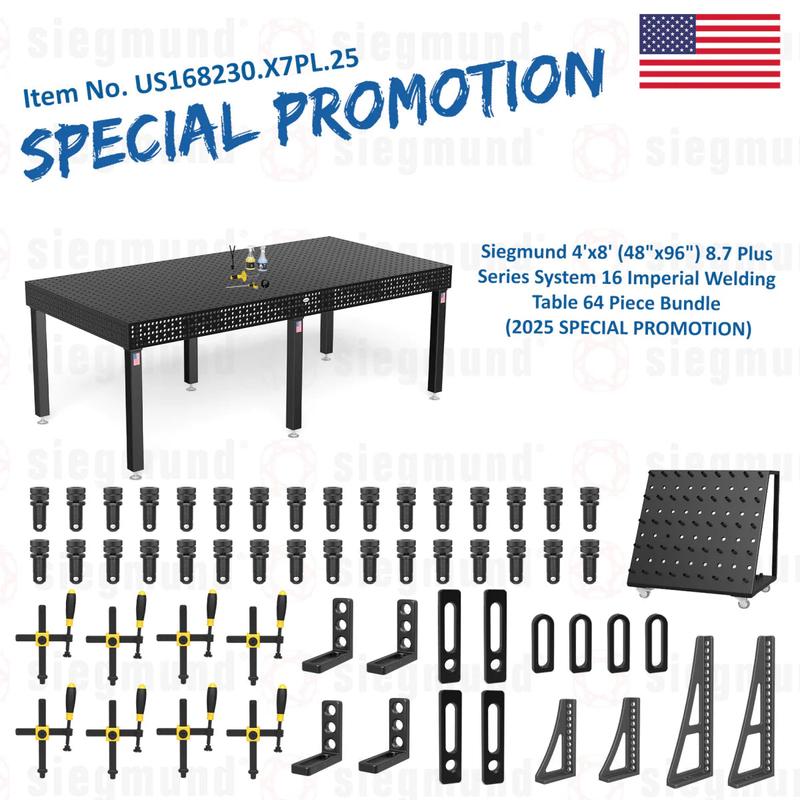

Siegmund US168230.X7PL.25: 4'x8' (48"x96") 8.7 Plus Series System 16 Imperial Welding Table 64 Piece Bundle (2025 SPECIAL PROMOTION)

All System 16 Professional Extreme Plus tables feature the latest upgrades in aesthetics, versatility, and durability.

Our Double Hardened Tables are constructed from tough hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.

Items Included in Bundle #US168230.X7PL.25:

US160030.X7PL
Quantity: 1
4'x8' mm Siegmund System 16 8.7 PLUS Welding Table
(Plasma Nitrided)

US160511
Quantity: 32
Fast Clamping Bolt without Double Slot (Burnished)

US160610
Quantity: 8
Professional Screw Clamp (Nitrided)

US160110.N
Quantity: 4
3-9/16" L Stop and Clamping Square (Nitrided)

US160410.N
Quantity: 4
3-1/8" Stop and Clamping Square (Nitrided)

US160162.N
Quantity: 2
12" G Stop and Clamping Square (Nitrided)

US160420.N
Quantity: 4
5" L Universal Stop (Nitrided)

US160164.N
Quantity: 2
20" G Stop and Clamping Square (Nitrided)

US160910
Quantity: 1
Tool Cart

US163999
Quantity: 1
Maintenance Set

Welding Table Specs and Features:

• Overall Tabletop Size: 4' x8'

• Borehole Diameter: Ø 16mm (5/8")

• Welding Table Series: Professional Extreme 8.7 Series

• Welding Table Material Thickness: Approx. 7/16" – 1/2"

• Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated

• Table Surface Hardness: 280 – 340 Vickers

• Official Siegmund Welding Table Part No.: US160030.X7PL

• Maximum Weight Load: 7,544 lbs. (Based on Even Distribution)

• Approximate Table Weight: 1,256 lbs.

1. Boreholes on the surface 2" x 2" grid.

2. Boreholes have a diameter of 16mm, Boreholes have a 5/8" Radius.

3. Boreholes on table side 3 rows with 1" spacing, 2 rows with 2" spacing

4. Height of table side is 7/16" - 1/2"" - Borehole in Diagonal Grid.

5. INCH Scale Engraved on the Surface.

6. Bottom of Structure has Reinforced Ribbing.

Siegmund System 16 Welding Table Leg Options - Full Specifications:

1. Standard Siegmund Leg(s)

• Item No.: US160853.X

• Leg Height: 30"

• Table Height: 36"

• Fine Adjustment: 1-5/8"

• Capacity Per Table Leg: 2,200 lbs.

2. Alternative Height Siegmund Leg(s)

• Item No.: US160858.X

• Leg Height: 32"

• Table Height: 38"

• Fine Adjustment: 1-5/8"

• Capacity Per Table Leg: 2,200 lbs.

3. Height Adjustable Siegmund Leg(s)

• Item No.: US160877.XX

• Leg Height (Adjustable): 22" - 38"

• Table Height (Adjustable): 28" - 44"

• Fine Adjustment:1-5/8"

• Capacity Per Table Leg: 2,200 lbs.

4. Siegmund Leg(s) with Casters and Locking Brakes

• Item No.: US160860.XX

• Leg Height: 30"

• Table Height: 36"

• Fine Adjustment: 1-3/16"

• Capacity Per Table Leg: 440 lbs.

5. Height Adjustable Leg(s) with Casters and Locking Brakes

• Item No.: US160879.XX

• Leg Height (Adjustable): 24" - 36"

• Table Height (Adjustable): 30" - 42"

• Fine Adjustment: 1-3/16"

• Capacity Per Table Leg: 440 lbs.
