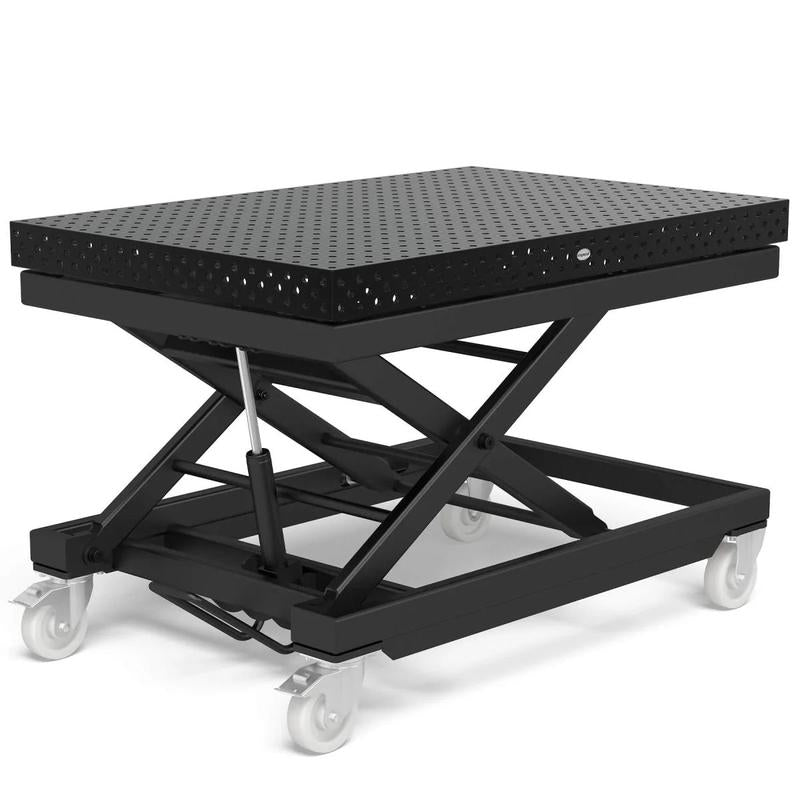

Siegmund USHS160075.X7: Imperial System 16 Heavy-Duty Mobile Lifting Welding Table 3'4"x5' (40"x60")
The System 16 Imperial Mobile Lifting Welding Table Series was created with Heavy Duty Applications in Mind.
All System 16 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.
Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.
Welding Table Specs and Features:
-
Overall Tabletop Size: 3'4" x 5' (40" x 60")
-
Borehole Diameter: Ø 16mm (5/8")
-
Welding Table Series: System 16- Imperial Series
-
Welding Table Material Thickness: Approx. 7/16" to 1/2"
-
Working height: between 28" and 39"
-
Height of Table Side: 3-15/16"
-
Maximum Weight Load: 2,200 lbs. (Based on Even Distribution)
-
Approximate Table Weight: 1,052 lbs.
-
Base frame - Steel construction
-
NEW AT SIEGMUND: HEAVY DUTY FRAME
-
Boreholes: Ø 16 mm (5/8"), Boreholes on the Surface are a 2"x2" Inch Grid Configuration.
-
Height of table side is 3-5/16" - Borehole in Diagonal Grid.
-
Protective plate below the worktop
-
Two castors with locking brake
